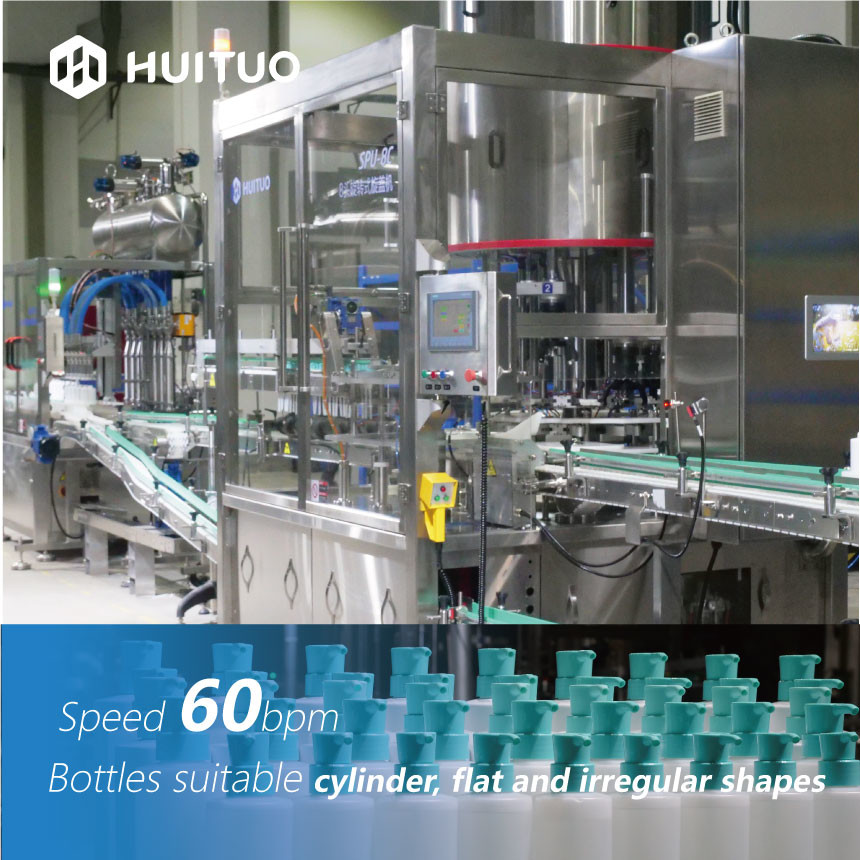

Rotary capping machine for shampoo and hair conditioner
Overview
8-head capping machine (it can be customized based on specific requirements)
Speed: 60bpm
Bottle volume: 300ml-1,000ml
Liquid: shampoo, hair conditioner
Bottles suitable: cylinder, flat and irregular shapes
Caps suitable: lotion pump, flip-top, pull-push, Yorker, disc-top etc.
Key parameters
| No. | Item | Description |
| 01 | Dimension | 2000mm*1800mm*2600mm |
| 02 | Capping head | 8, customized based on requirements |
| 03 | Stand-alone pass rate | 99% |
| 04 | Cap unscrambler φ | ≤1500mm |
| 05 | Torque control | 10-45 kgf.cm |
| 06 | Speed | 60bpm |
| 07 | Voltage | 220VAC~380VAC,50Hz |
| 08 | Power | 20kw |
| 09 | Air source | 0.6Mpa clean and stable air source |
| 10 | Noise | ≦80 decibels |
| 11 | Weight | 4,000kg |
| 12 | Material | Frame: carbon steel cladding stainless steel frame; Capping head: Aluminium alloy Screen door: stainless steel edging, plexiglass; Electrical cabinet: stainless steel; Connection and fixing mechanical parts: carbon steel, stainless steel, etc.; Seal: rubber |
Cap elevator and unscrambler
The cap is arranged by double-centrifugal principle, and it is output from the cap-feeding channel in order. Provide caps to the capping head via cap-divider.
- The speed of the unscrambler is automatically adjusted according to the elevator.
- The unscrambler is automatically controlled by the capper touch screen, without manual adjustment.
- For different caps, just change the inner guiding plate.
